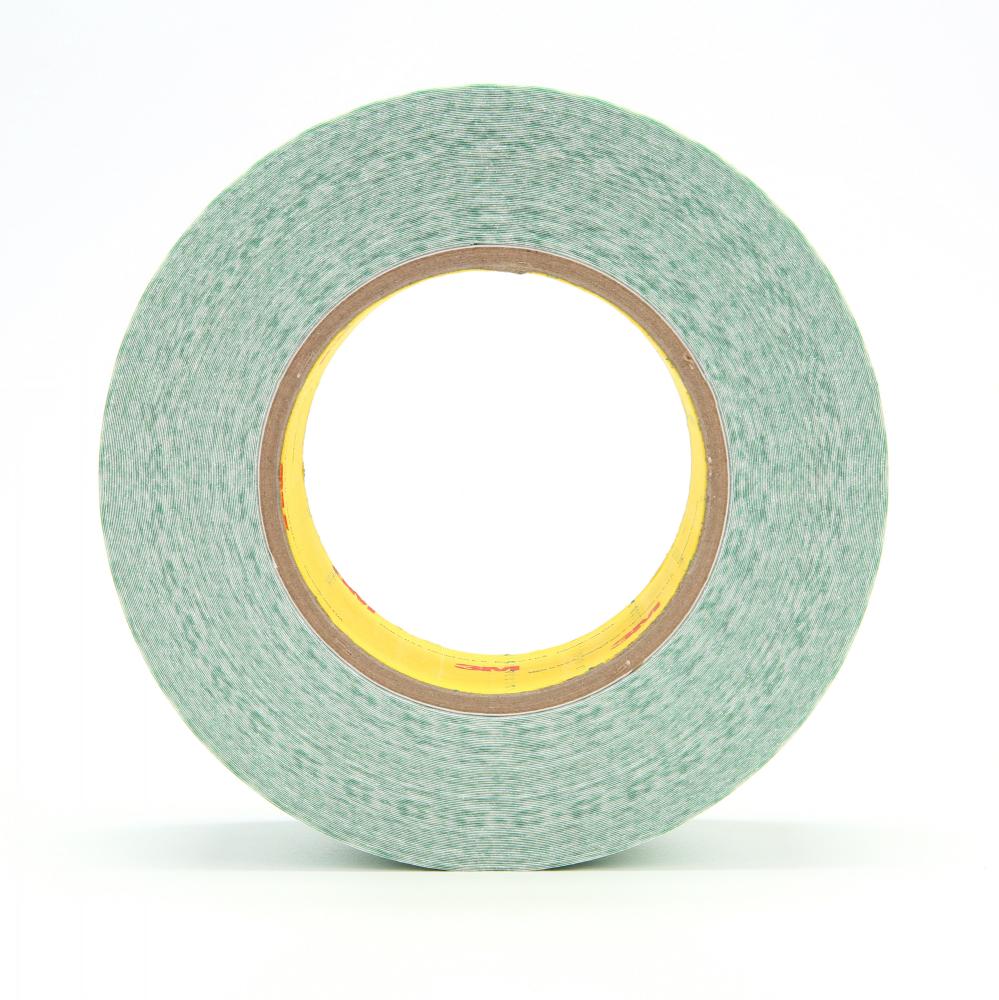

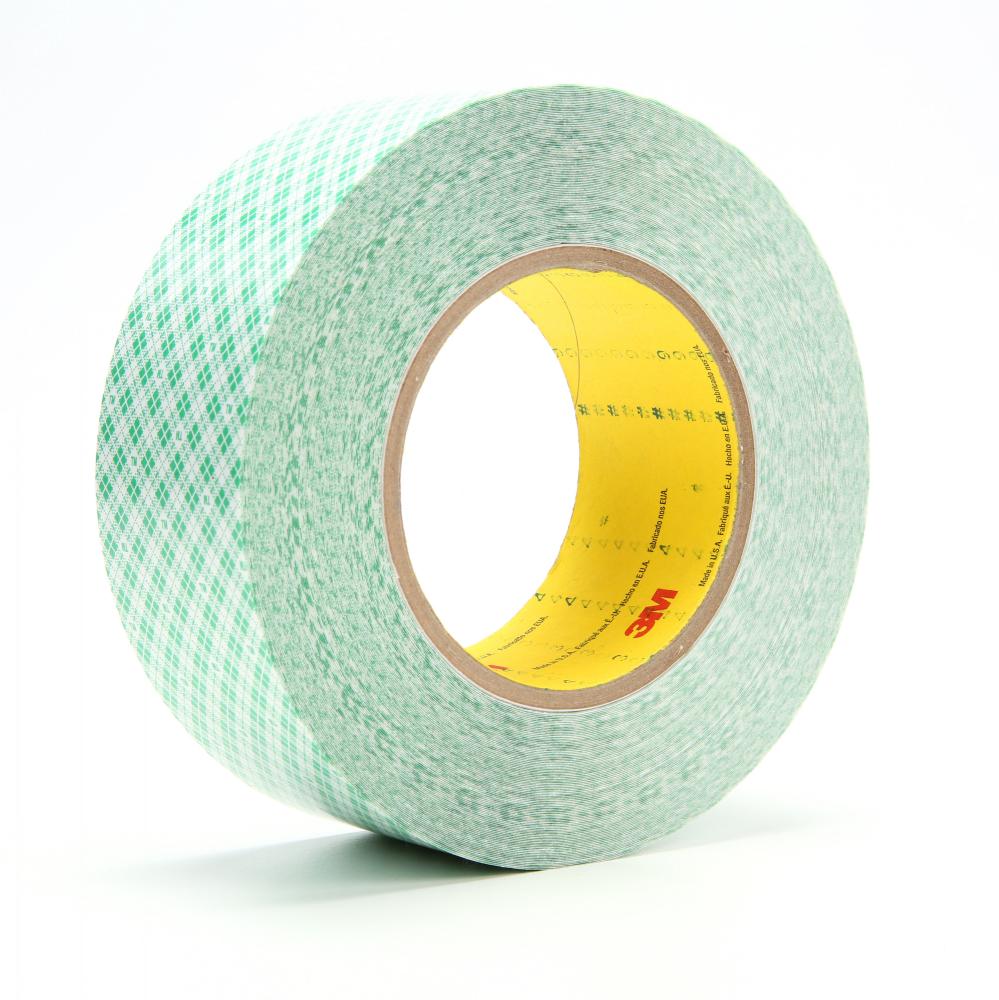

3M™ Double Coated Film Tape, 9589, white, 9 mil (0.23 mm), 2 in x 36 yd (5.1 cm x 33 m)
Call For Price
- Part Number: 7000048621
- UPC:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The 3M™ Double Coated Film Tape 9589 features a high-density, polyethylene carrier with synthetic rubber adhesive on a densified kraft paper liner. It combines high initial adhesion and good holding power to ensure it bonds to a variety of materials. The paper liner has been specially treated to improve its strength and removability characteristics.The 3M Double Coated Film Tape 9589 is a 9.0 mil (0.2 mm), double-coated tape with a high tack synthetic rubber adhesive on a high density polyethylene (HDPE) carrier. The 3M Adhesive 760 provides excellent quick stick and bonds together a wide variety of materials, with a build up over 24 hours that allows for proper placement of bonded materials. It features excellent adhesion to both high surface energy and low surface energy substrates and is an excellent choice for many indoor and room temperature applications such as carpet installation. The HDPE carrier adds dimensional stability to aid in removal while also providing easier handling during slitting, lamination and die cutting, and it tears by hand for quick and easy application. The tape is mounted on a 3.7 mil (0.09 mm), 62 lb. (28.12 kg), densified kraft paper liner which has been specially treated to improve strength and removability from high internal strength surfaces. This tape can withstand short term temperatures of up to 200F (93C)
Specifications
Details
Industrial Category:
Adhesives, Sealants and Tape
Industrial Subcategory:
Tapes
Industrial Subtype:
Film Tape
Application:
Mounting & Trim Attachment , Gasket Assembly
Backing (Carrier) Material:
HDPE
Backing (Carrier) Thickness (Imperial):
0.178 mil
Backing (Carrier) Thickness (Metric):
0.076 mm
Carrier Material:
High Density Polyethylene HDPE
Carrier Thickness:
0.178472222222222 mil
Carrier Thickness (Metric):
0.08 mm
Color Family:
White
Core Size (Imperial):
3.0 in
Core Size (Metric):
76.2 mm
ECCN:
EAR99
Face Side Adhesive Thickness (Imperial):
3.0 mil
Face Side Adhesive Thickness (Metric):
0.08 mm
Face Side Adhesive Type:
Synthetic Rubber Adhesive 760
Indoor/Outdoor:
Both
Inner - Customary Height Dimension:
12.6
Inner - Customary Length Dimension:
6.1
Inner - Customary Width Dimension:
6.1
Inner - Unit:
WRAP
Master Size Length (Metric):
131.7 m
Master Size Width (Metric):
66.0 cm
Maximum Operating Temperature (Celsius):
49.0 °C
Maximum Operating Temperature (Fahrenheit):
120.0 °F
Minimum Operating Temperature (Celsius):
-40.0 °C
Minimum Operating Temperature (Fahrenheit):
-40.0 °F
Overall Length (Imperial):
36.0 yd
Overall Length (Metric):
32.91 m
Overall Thickness (Imperial):
3.0 mil
Overall Width (Imperial):
2.0 in
Overall Width (Metric):
50.8 mm
Primary Liner:
62# Densified Kraft Paper (DK)
Primary Liner Color:
White/Green
Primary Liner Thickness (Imperial):
3.7 mil
Primary Liner Thickness (Metric):
0.09 mm
Product Color:
White
Product Form:
Roll
Set Time:
<10 Second
Substrate:
Cardboard
Substrate 2:
High Surface Energy, (400-1100 Dynes/cm)
Total Tape Thickness without Liner (Imperial):
9.0 mil
Total Tape Thickness without Liner (Metric):
0.228 mm
Unit of Use - Customary Height Dimension:
1.95
Unit of Use - Customary Length Dimension:
5.75
Unit of Use - Customary Net Weight:
1.1700
Unit of Use - Customary Width Dimension:
5.75
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
RLS
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
RLS
Other Details
Adheres well to low-energy substrates
Adhesive removes cleanly from many surfaces to ensure a relatively easy clean-up process
Excellent quick stick and high adhesion ensure a reliable bond to a variety of substrates
High density polyethylene carrier provides dimensional stability and tears by hand
Specially treated paper carrier to improve strength and removability characteristics from high internal strength surfaces
